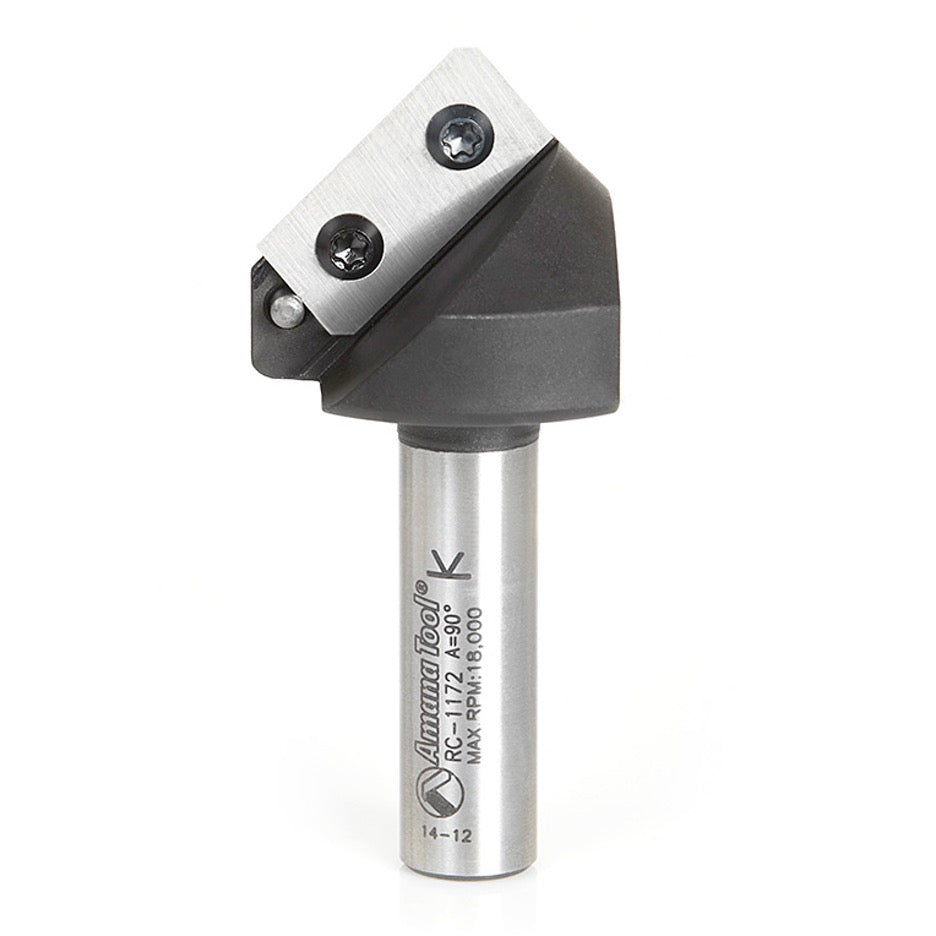

Amana 90 Degree V-Groove Router Bit with Carbide Insert RC-1172
Roll over image to zoom in Click on image to zoom
Amana 90 Degree V-Groove Router Bit with Carbide Insert RC-1172

Amana 90 Degree V-Groove Router Bit with Carbide Insert RC-1172

Save 3%
Amana Tool SKU: AM-RC-1172
Price:
$201.13 $208.04

Return Policy

We want you to be happy with our products. If you are not completely satisfied with your purchase, return it to us within 30 days and we will issue a refund for the purchase price.*

It is often possible that we can resolve issues you may have quickly and simply. Feel free to contact us with your questions or concerns.

If a return is necessary, please contact us for return authorization and shipping arrangements.

*Please see our Return & Warranty page for more details.

The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for shaping Aluminum Composite (sandwich) Materials (ACM) by clearing out the material at the back and folding the panel, leaving the outer surface intact.

    Excellent for cutting:

    • Acetate
    • Acrylonitrile-Butadiene-Styrene (ABS)
    • Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
    • Aluminum 5052
    • Aluminum Composite Materials (ACM)
    • Aluminum Composite Panel (ACP)
    • ALPOLIC® Copper Composite Material (CCM)
    • Alucobond®
    • Alupanel®
    • Bakelite
    • Dibond®
    • Durabond
    • e-panel™
    • Etalbond®
    • Lexan™
    • Nylon
    • PE and FR Cores
    • Phenolics
    • Plastic/Acrylic
    • Plexiglas®
    • PVC
    • Stainless Steel Composite Material (SCM)
    • Titanium Composite Material (TCM)
    • Wood


    Advantages of Insert Tooling:

    • Long lasting insert knives provide superior smooth quality cuts every time
    • Quick and precise replacements of dull knives
    • Due to insert accuracy tool life is extended
    • Insert tooling allows for harder grades of carbide
    • Special carbide grades for special applications
    • Knives can be re-sharpened multiple times without affecting the original profile
    • Cost effective solution compared to replacing brazed router bits

    Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

    Specifications

    • 90 degrees
    • 1-1/2 inch cut diameter
    • 0.090 inch tip diameter
    • 45/64 inch cut length
    • 18,000 maximum RPM
    • 1/2 inch shank
    • 1 flute
