Two Close Fit DoubleGroove Tall Dogs, one standing and one laying down showing the tapered tip and threaded hole.
Roll over image to zoom in Click on image to zoom

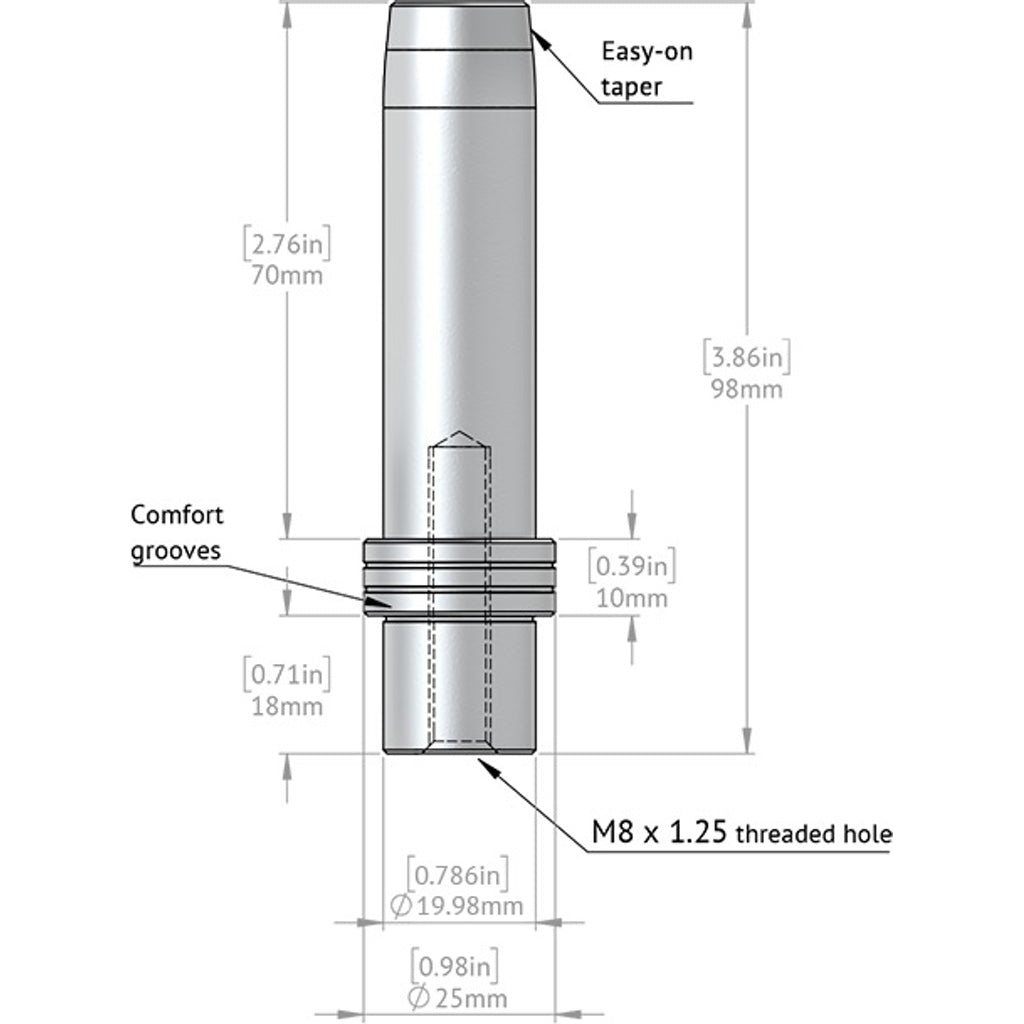

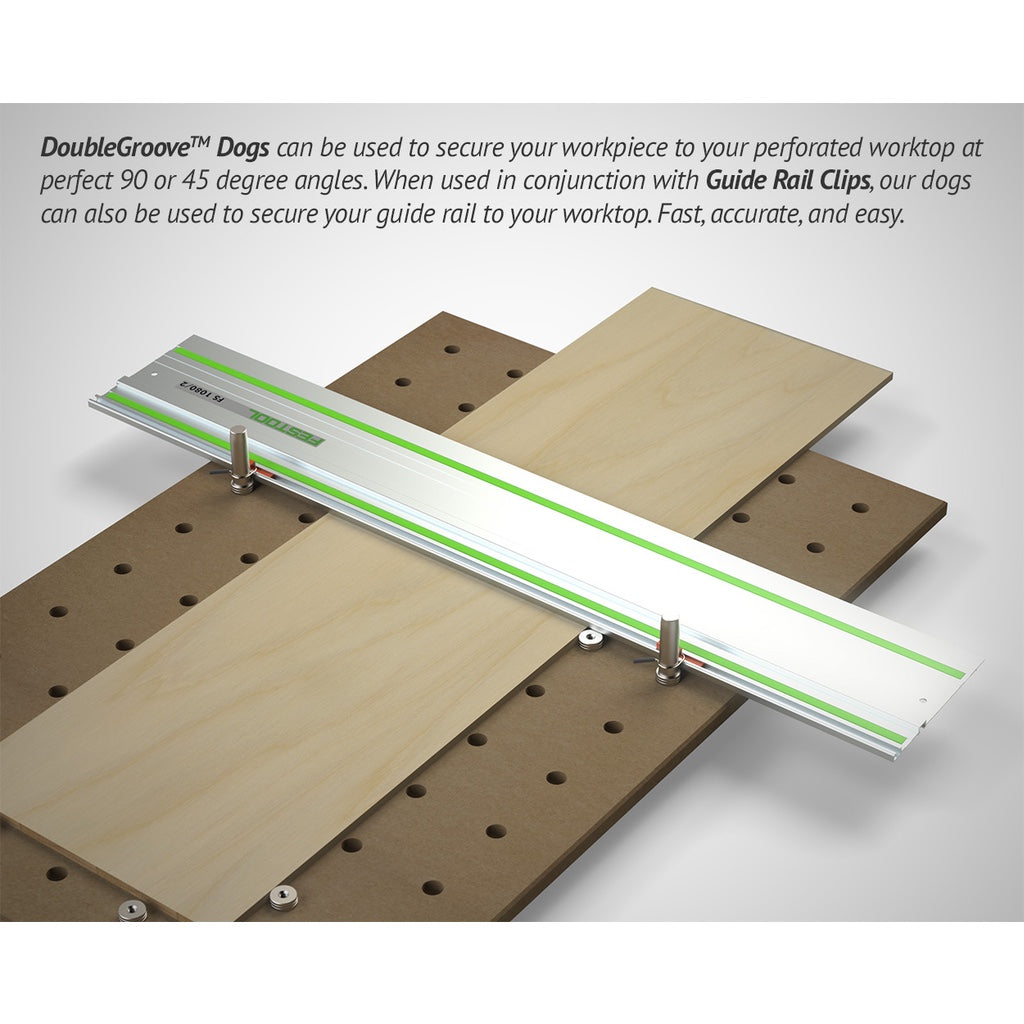

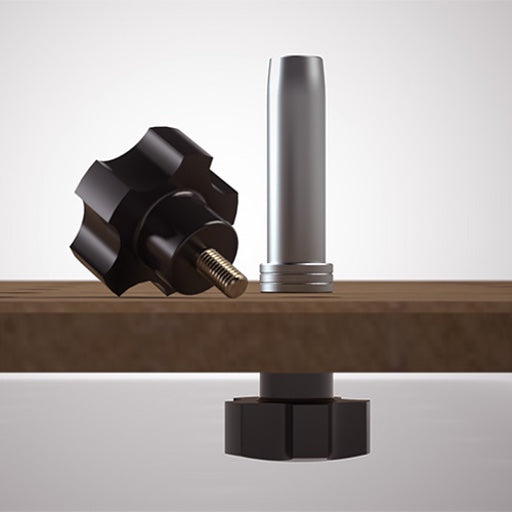

Two Close Fit DoubleGroove Tall Dogs, one standing and one laying down showing the tapered tip and threaded hole.Dimensioned drawing of a TSO Products Close Fit Tall Dog, including thread specifications and comfort grooves.A pair of DoubleGroove Tall Dogs attached to a Festool guide rail with dog clips, with a workpiece on an MFT-style top.A SpeedKnob is used to clamp a Close Fit DoubleGroove Tall Dog to a MFT-style worktop, holding it secure, perpendicular.

TSO DoubleGroove Close Fit Tall Dogs for Guide Rails MFT System Compatible 61-410 A

TSO Products SKU: TSO-61-410 A
Price:
$42.95
Buy in monthly payments with on orders over $300. Learn more

Return Policy

We want you to be happy with our products. If you are not completely satisfied with your purchase, return it to us within 30 days and we will issue a refund for the purchase price.*

It is often possible that we can resolve issues you may have quickly and simply. Feel free to contact us with your questions or concerns.

If a return is necessary, please contact us for return authorization and shipping arrangements.

*Please see our Return & Warranty page for more details.

Close fit dogs are sized at 19.98 millimetres (instead of 19.90 millimetres for a Festool MFT) in diameter and are ideal for 20 millimetre dog holes made with the Parf Guide System or a CNC router.

Tall dogs are designed to aid in the positioning of a guide rail in line with 20 millimetre dog holes for repeatably accurate cuts on a MFT-style worksurface.

Easy to install or remove

Chamfered edges allow easy insertion, and grooves around the collar allow a better grip for easier removal.

Easy to use

The tapered tip allows easy installation of Dog Rail Clips onto the dog.

Accurate by design

A small undercut under the collar guarantees the dog can stand at 90 degrees to the work surface even if the dog holes aren't free of tearout.

System compatible

Lock down the dogs with an M8x1.25 male knob such as the knobs included with a set of Festool Clamping Elements or TSO's own SpeedKnobs.

Specifications

  • 19.98 millimetres diameter
  • 70 millimetres above the collar
  • 18 millimetres below the collar
  • 6061-T6 aluminum
  • Clear anodized

Scope of delivery

  • 2x DoubleGroove 20mm Close Fit Tall Bench Dogs
