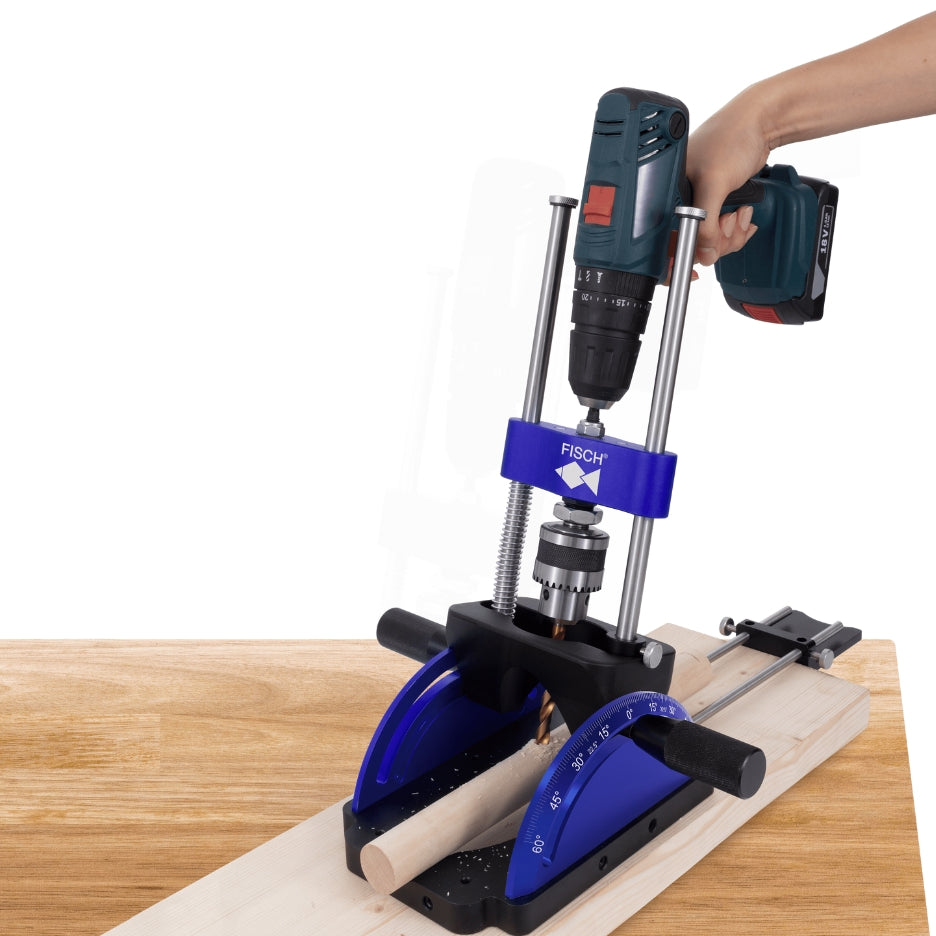

The Fisch Tools Heavy Duty Tilting Drill Guide is designed for precision drilling at any angle. With a high-precision circulating ball bearing guide, it delivers smooth and accurate drilling while ensuring stability and ease of use. Do not confuse this guide with light-duty ones commonly available.

Adjustable angle range for versatile applications

Its continuously adjustable angle range of +/-60 degrees allows for precise drilling in various applications. The clear angle measurement scale, marked in one-degree increments, ensures accuracy, while the two clamping handles securely lock the guide in place. The precision rotating unit features a fixed rotating point at the base plate level, guaranteeing exact entry points for repeatable and controlled drilling.

Adjustable stops for enhanced accuracy with Fisch Tools Heavy Duty Tilting Drill Guide

For drilling into profiles, pipes, and round stock, the V-support profile ensures centric alignment, even when working at an angle. The adjustable longitudinal stop can be mounted in four different directions, providing flexibility for different tasks. Positioning pins serve multiple functions, acting as side stops, longitudinal stops, or diagonal stops for precise centre drilling.

Compact design with smooth and controlled operation

With its compact and stable design, the drill guide provides precise bit guidance for drill bits up to 64 millimetres in diameter and drilling depths up to 200 millimetres. The adjustable depth stop allows for accurate and repeatable drilling depths, while the smooth movement of the guide slide, ensured by circulating ball bearing guides, enhances control and efficiency. The angular base plate features a precisely machined support surface, delivering a stable grip for reliable performance in any workshop or job site.

The Fisch Tools Heavy Duty Tilting Drill Guide is the perfect solution for those who demand accuracy, stability, and ease of use, whether working with wood, metal, or plastic.

Fisch Tools Heavy Duty Tilting Drill Guide F073DG001 specifications

• Continuously adjustable depth stop

• Stainless steel return spring

• High-precision circulating ball bearing guide

• 2 clamping grips for continuous angle adjustment of +/-60 degrees

• Maximum drilling depth: 200 millimetres

• Maximum drill bit length: 320 millimetres

• Chuck: diameter 1 millimetre to 13 millimetres

• Maximum drilling diameter: 64 millimetres

• Weight: 4.7 kilograms
