Available beginning early June. Pre-order now to reserve yours.

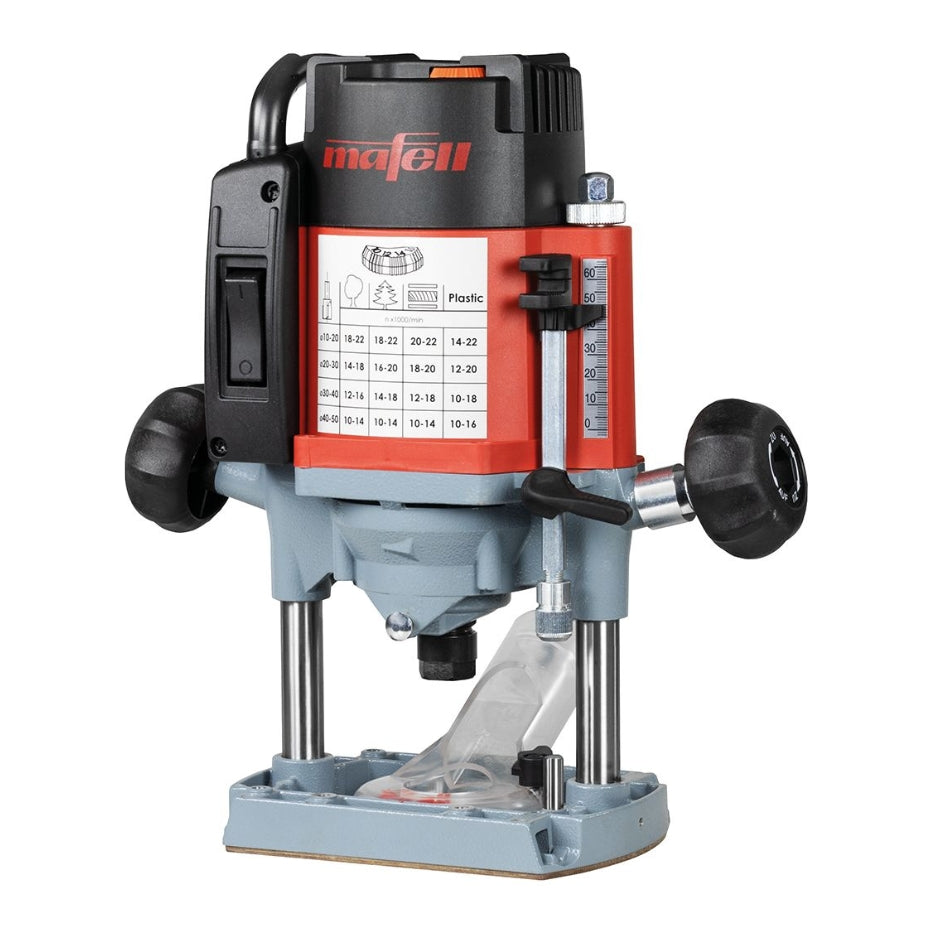

The Mafell LO 65Ec MidiMAX is the ultimate plunge router, delivering exceptional power, precision, and control for demanding woodworking applications. Whether you’re cutting dovetail joints with the ARUNDA Dovetail System or performing intricate routing tasks, this router is designed to handle it all with ease and accuracy.

Mafell Plunge Router LO 65Ec: high-power CUprex motor with adaptive speed control

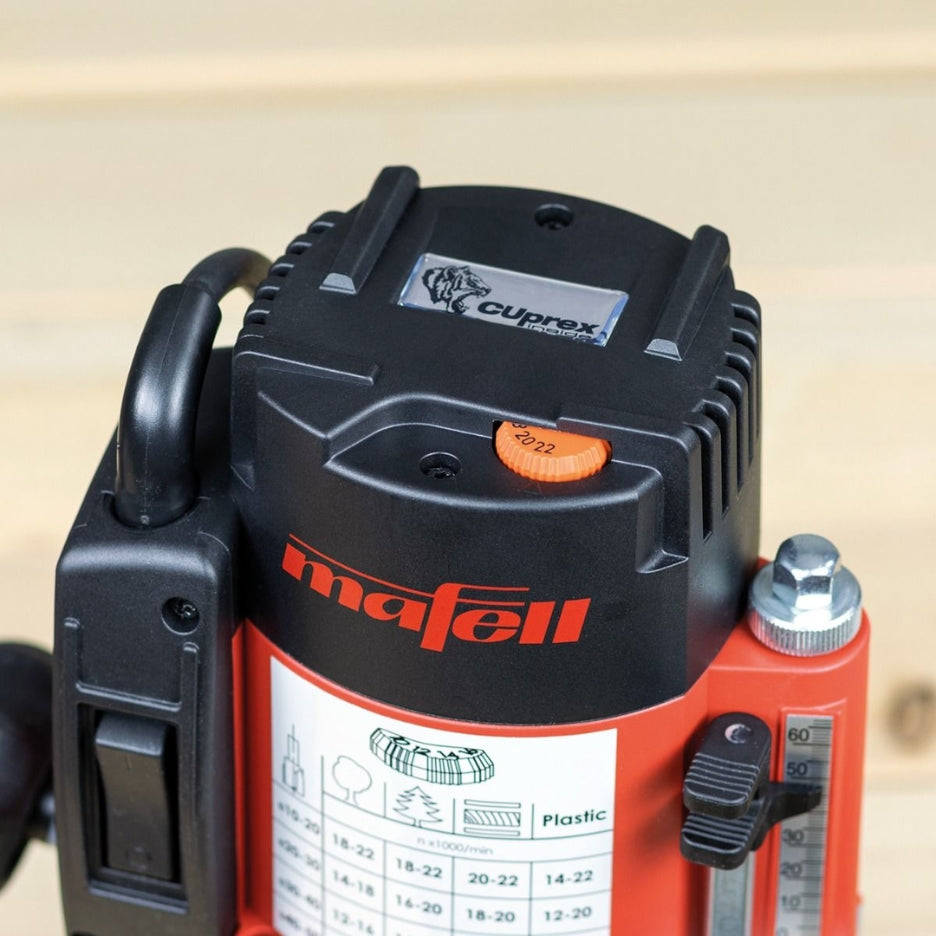

At the heart of the LO 65Ec is the high-output CUprex motor, a performance-optimized system with advanced digital electronics and control technology. This 2,600 Watts (3.5 horsepower) motor operates at 10,000–22,000 Revolutions Per Minute, providing high torque and smooth power delivery. The continuously variable speed control adapts to different materials and applications, ensuring the best possible results in every cut.

Precision engineering for unmatched accuracy

The precision-engineered components allow for filigree work that demands absolute accuracy. The fine adjustment of cutting depth ensures an exact setup, making refinishing an exception rather than a necessity. The twin-guide parallel fence with fine adjustment further enhances precision, enabling smooth, controlled routing.

The LO 65Ec is optimized for ARUNDA dovetails

The Mafell LO 65Ec is optimized for ARUNDA dovetails, featuring a pre-drilled and tapped base plate that seamlessly accepts the ARUNDA expansion plate for effortless compatibility. It also includes a built-in groove in the base plate, allowing for flush trimming of edge bands without requiring additional attachments.

Quick bit changes and enhanced safety features with the Mafell Plunge Router LO 65Ec

For added convenience, bit changes are quick and easy - simply flip the router upside down to access the spindle lock for fast replacement. Safety is a priority, with an electronic brake that stops the motor in less than 5 seconds for controlled operation. Additionally, voltage loss protection prevents uncontrolled reconnection after a power interruption, offering extra security in the workshop.

Mafell Plunge Router LO65Ec-USA/CAN MidiMAX240V 91C723 specifications

• Cutting depth: 0 - 63.5 millimetres (0 - 2 1/2 inches)

• Nominal speed – no load: 10,000 - 22,000 per minute
• Motor: 240 volts / 60 Hertz
• Current: 13.8 Amperes
• Weight: 5.67 kilograms (12.5 pounds)

Mafell Plunge Router LO65Ec-USA/CAN MidiMAX240V 91C723 scope of delivery

• 1x Mafell Plunge Router LO65Ec
• 1x Adapter for M12x1 ARUNDA Bit

• 1x 1-1/8 inch Template Guide

• 1x Chip Collector

• 1x Single-End Spanner

• 1x 13.1 foot Cord

• 1x T-MAX Carrying Case
