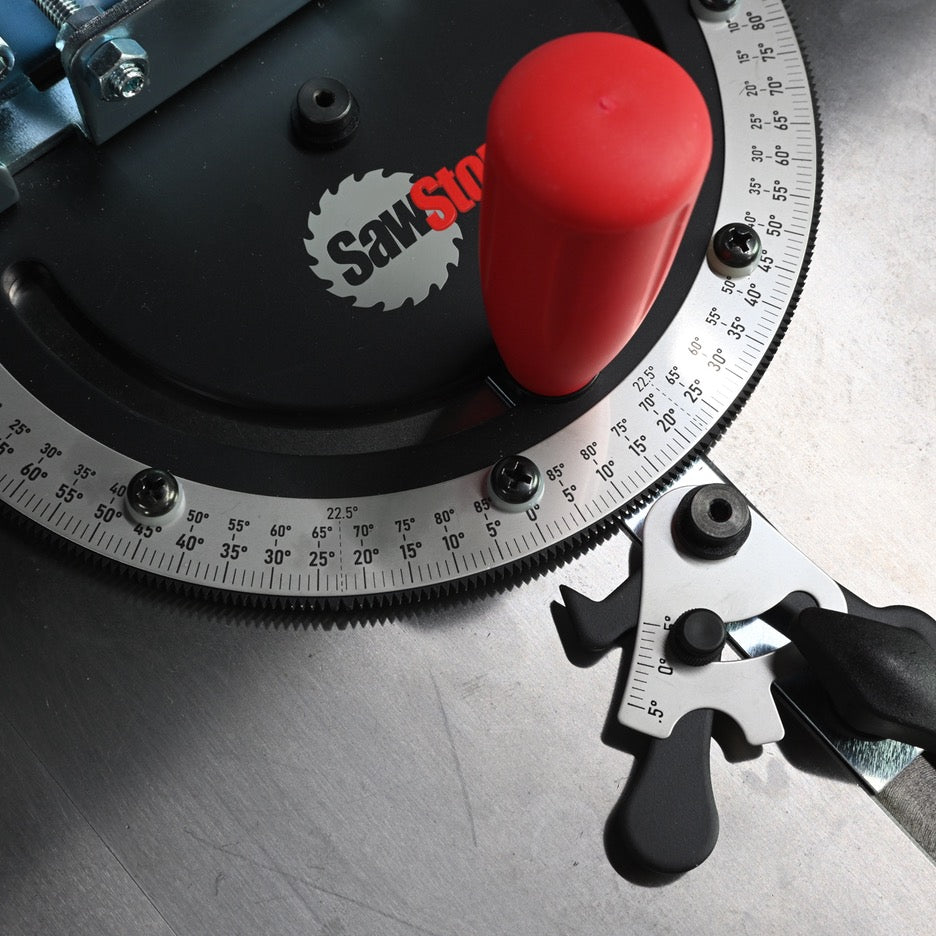

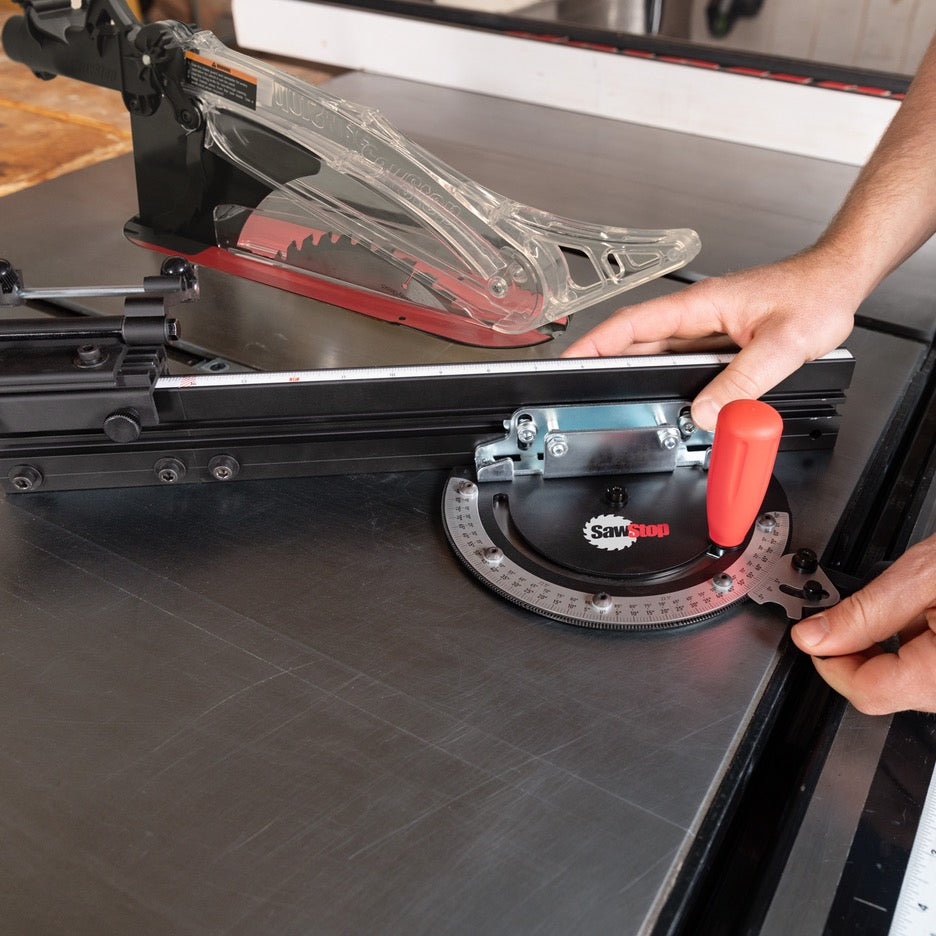

SawStop's Scale Miter Gauge makes is fast, easy, and accurate to set angles. The mitre head features a toothed design and indexing pointer that allows sure and repeatable positioning up to 90 degrees left and right in 1 degree increments as well as an extra at 22.5 degrees left and right. For in-between angles, and Vernier scale allows fine-tuning of the angle in 0.1 degree increments.

Get a perfect fit with an adjustable T-slot mitre slot bar

The 18 inch long mitre slot bar features six adjustable washers to remove any play with the mitre slot. A removable piece at the front engages with T-slot mitre gauges and can be easily removed if not needed.

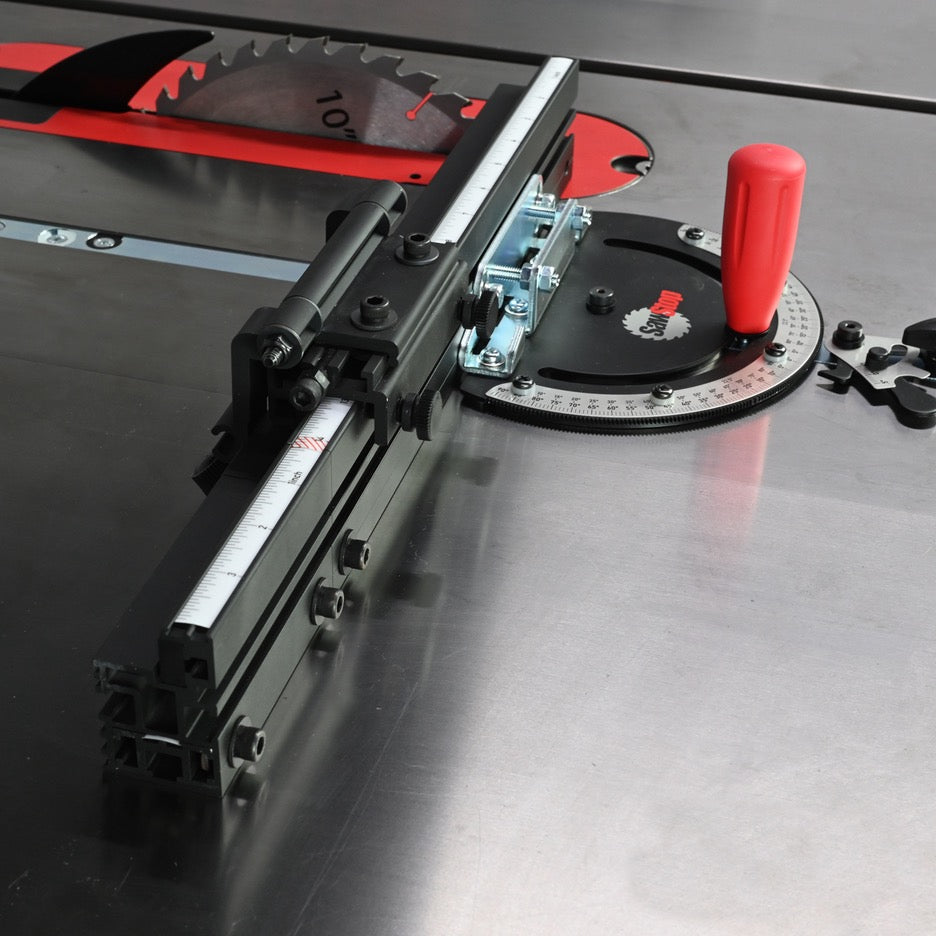

SawStop's Scale Mitre Gauge features a large capacity fence

To control the workpiece, the large extruded aluminum offers plenty of support and extends up to 31 inches. The top scale can be calibrated to your saw for rapid material processing without having to measure each part

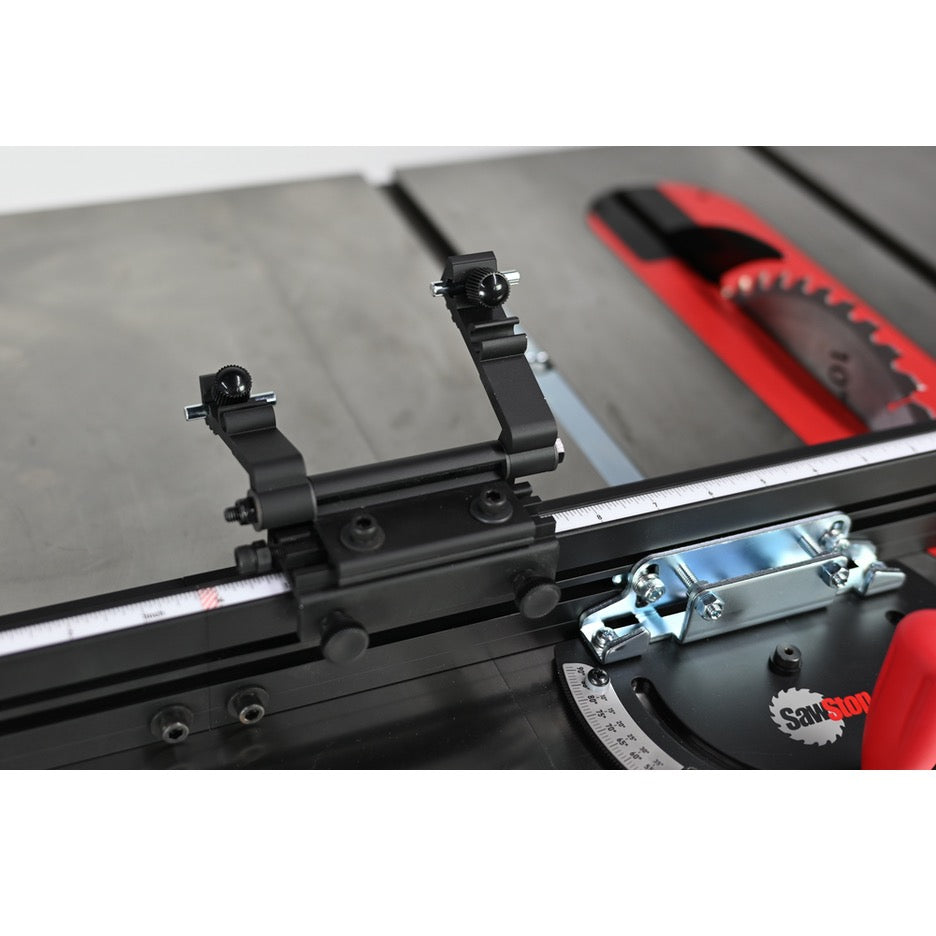

Scale Mitre Gauge's versatile and accurate flip stop makes work efficient

The flip stop indexes on the aluminum fence every 1/32 inch for fast and accurate settings. Each of the two flip stop arms can be set independently at different positions, or linked together. A micro-adjust mechanism is the last key piece of the flip stop on the Scale Mitre Gauge.
