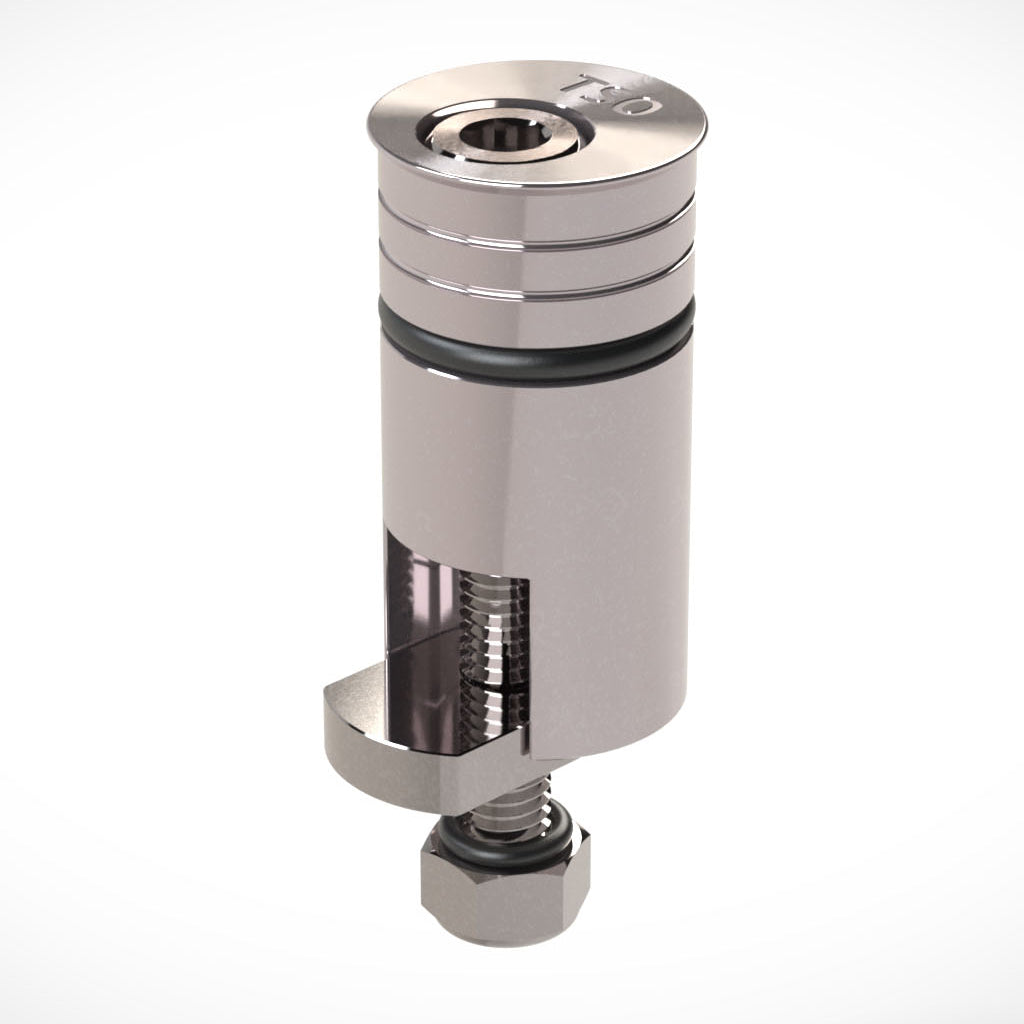

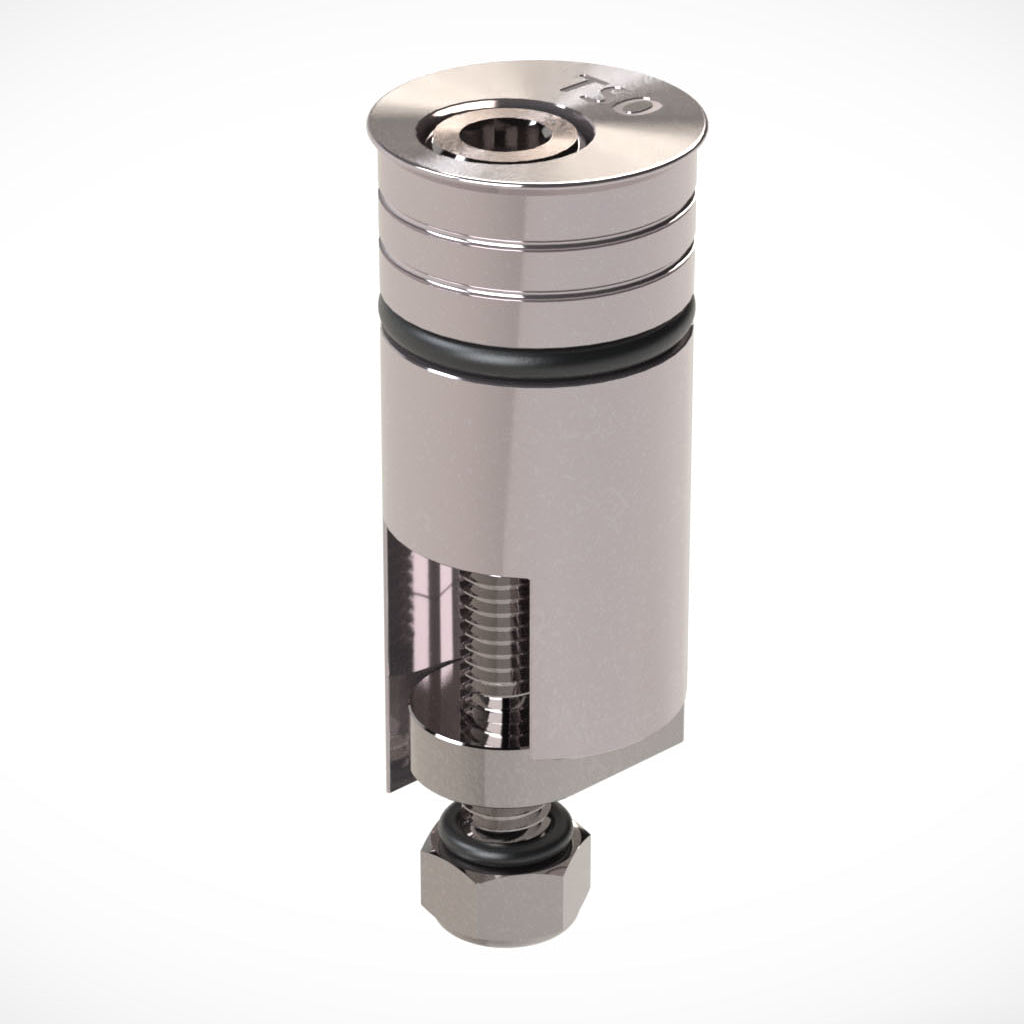

These stainless steel dogs are used to connect anything with a 20 millimetre hole to a work surface with a 20 millimetre hole.

Clever design for simple use

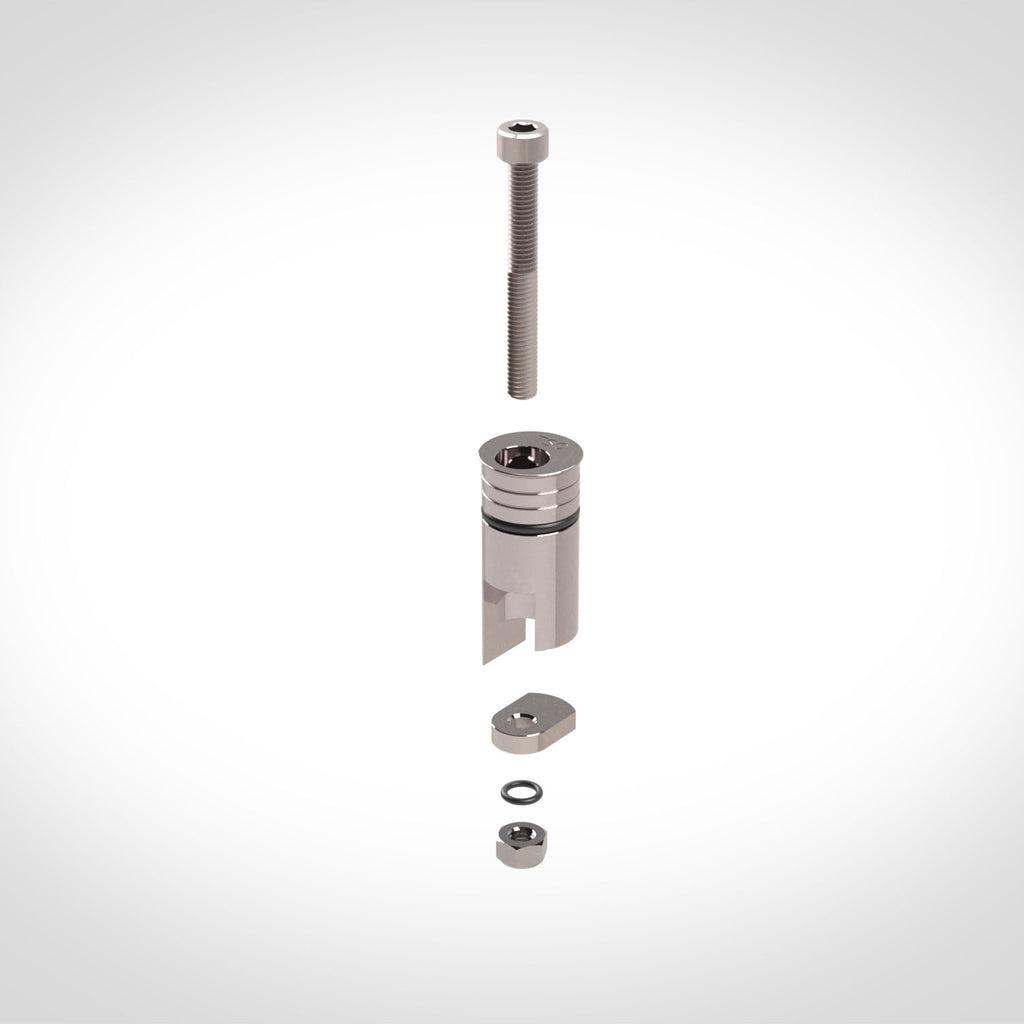

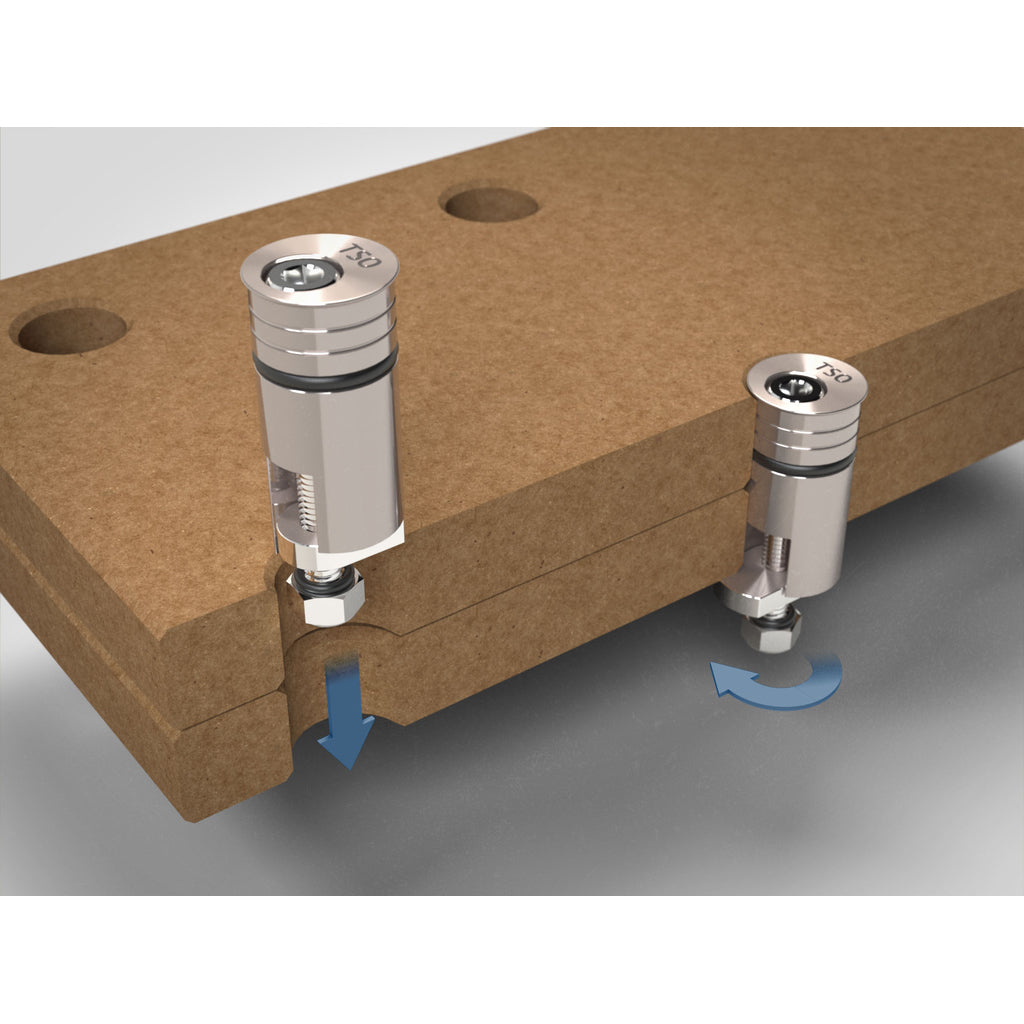

The connector dogs are inserted, tightened, loosened, and removed all from the top, with no need to reach below and no removable parts to lose.

30 to 40 millimetre clamping capacity

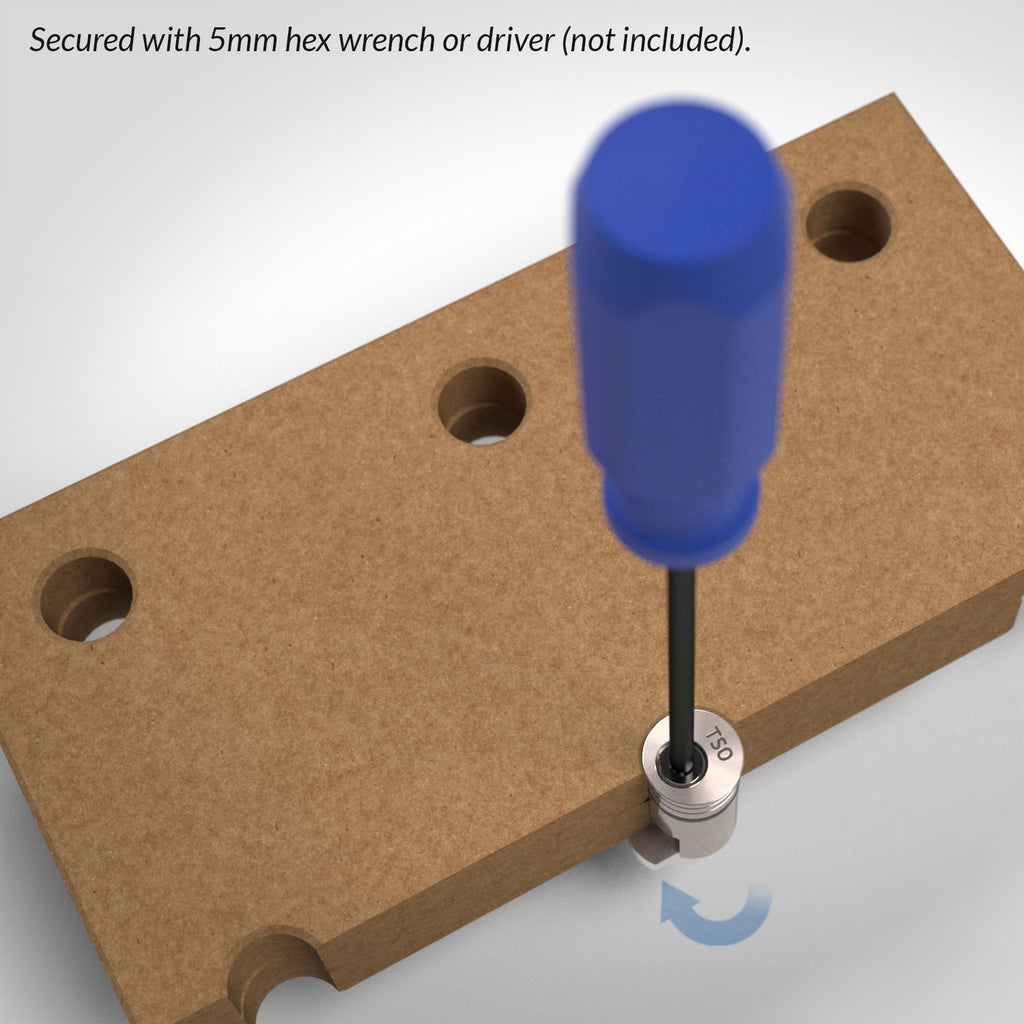

Clamp materials with a combined thickness of 30 to 40 millimetres (1-3/16 to 1-9/16 inches). To avoid over-tightening, simply tighten the locking lug until it rests firmly against the bottom of the work surface. A 5 millimetre hex key (not included) is required to operate the dog.

Flush mountable

If the holes of your top work surface are chamfered, the Power-Loc dogs can be flush-mounted. Use a router with 45 degree chamfer bit to produce the perfect chamfer (TSO does not recommend the UJK Chamfer tool for this procedure).
